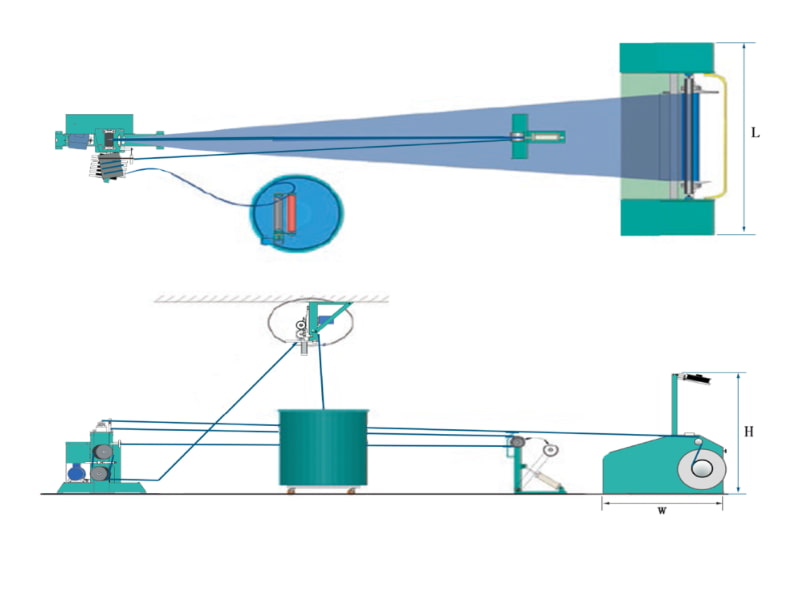

This is a machine in rope dyeing range for DENIM production only. Change dyed yarn from rope to sheet then winding on warp beam.
Beam diameter (mm) :
800, 1000Working width (mm) :
1600, 1650, 1800Warping speed (m/min) :
500Brake distance (m) :
≤1.5 （at highest speed）Winding density (g/cm³） :
0.3-0.65

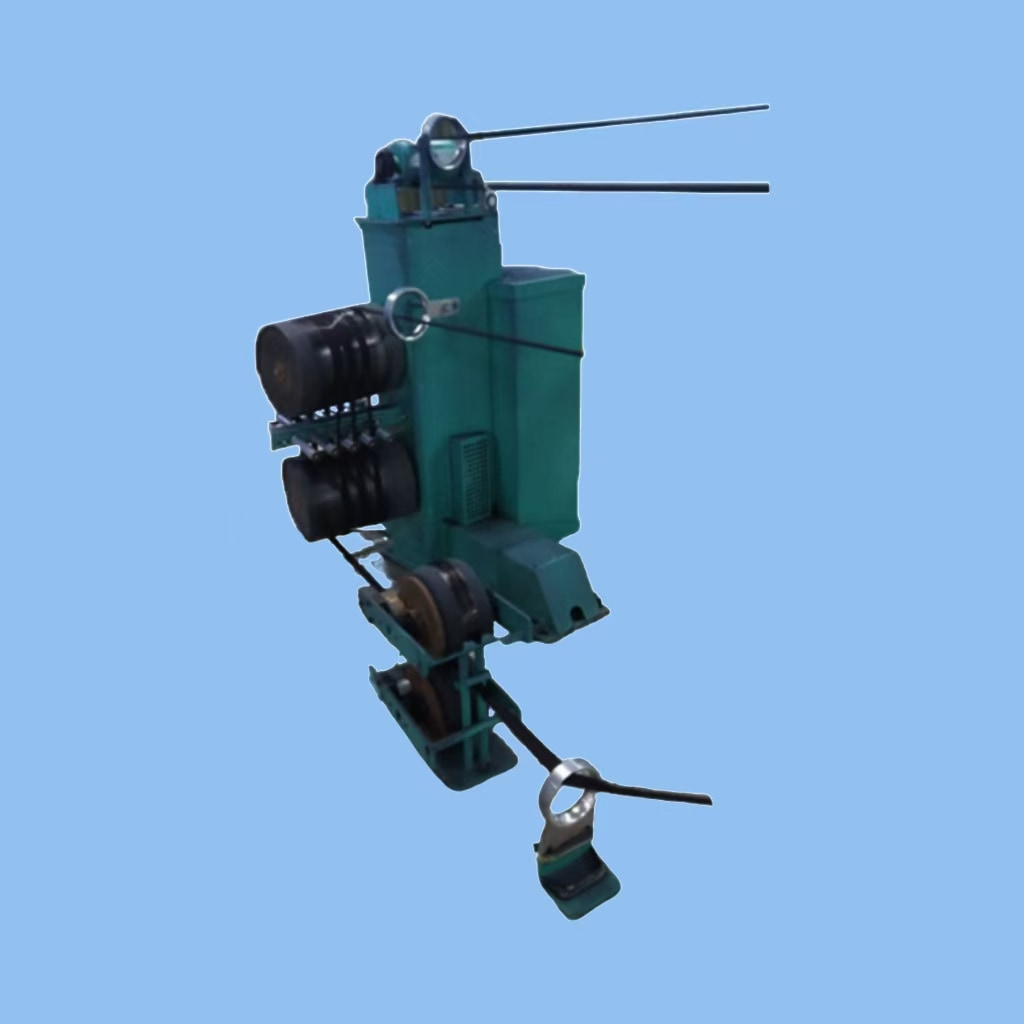

Upper reversing
- Reverse rope back to the barrel to avoid yarns are polluted.
- When the tension is too big, there’s a clutch in this system working to avoid friction between yarns and guide roller, prevent yarns from being damaged.
Tension Frame
- By frequency motor, keep yarn tension to be constant as set value.
- Clamp device mounted below can reduce yarn loosen when machine stops or during reversing.
Buffing Device
- Auto-adjust arm’s position according to the signal from angle sensor, which guarantees the actual tension and set tension to be same.

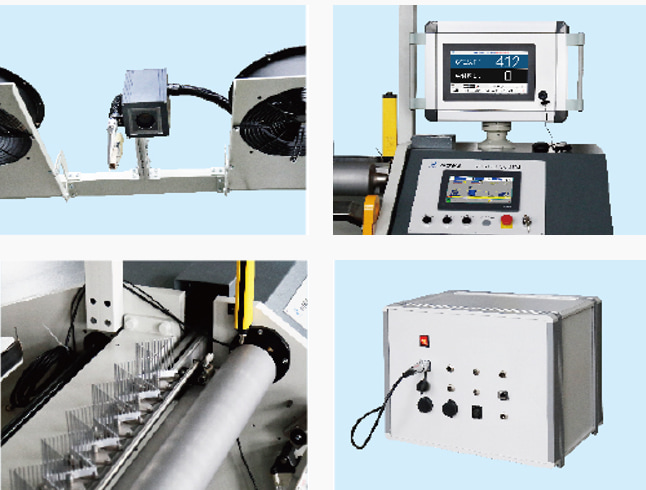

AVS- Artificial Visible System
- High speed industrial camera.
- Photoelectricity to avoid machine stops by mistake.
- Real time feedback of warp yarn number.
- Integrated host.
This is a machine in rope dyeing range for DENIM production only. Change dyed yarn from rope to sheet then winding on warp beam.
