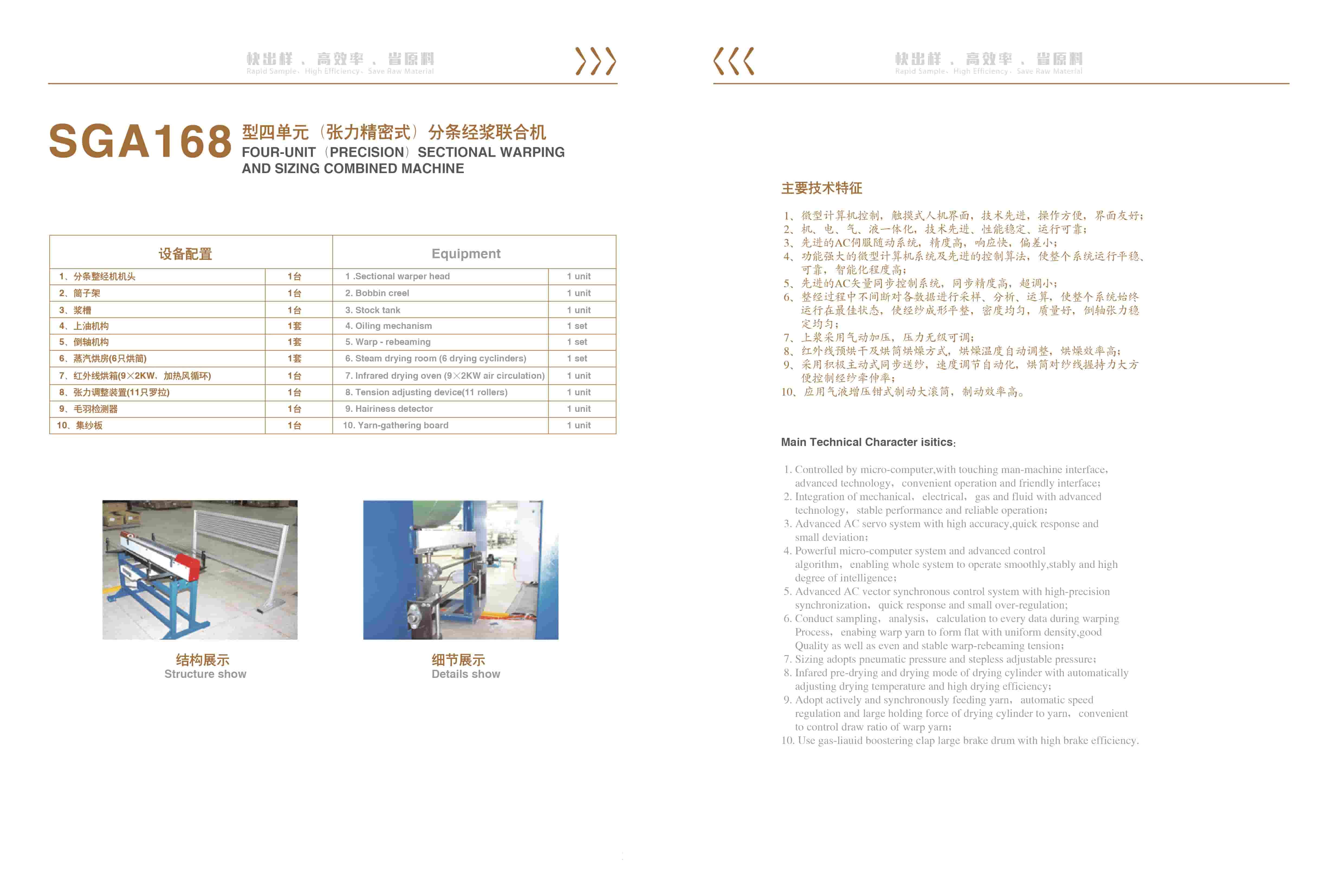

SGA168 Four-unit (Precision) Sectional Warping and Sizing Combined Machine

Name: SGA168 Four-unit (Precision) Sectional Warping and Sizing Combined Machine
Availability: InStock

Sectional Warping and Sizing Combined Machine

Product Categories

New Products

Warping width:2200mm
Fabric axle disc diameter≤1000mm
Drum cone angle ratio:1:8
Braking distance:≤3m
Warp-rebeaming speed:20-100m/min
Warp-rebeaming tension:6000N
Displacement accuracy:0.001-9.999mm,stepless adjustable
Warping speed:8~150m/min(using speed of 120m/min) (determined by the variety)
Bobbin creel: spindle distance: 300x300mm (can be customized)
Ends in warp:0-560 (can be customized)
Max. evaporation capacity: 300kg/hr (0.3NPa≤vapor pressure≤0. 35HPa)
Infrared pre -drying: carbon fiber infrared quartz electric heating tube, 9X2KW
Technological requirements: take variety of 50D-72F for example: sizing rate:10~11%，mosturecontent:0.8~1.4%
Outline dimension:29500x8800x2700(mm)
