H-FANG invites you to gather at ITMA 2024 Shanghai Textile Machinery Exhibition!

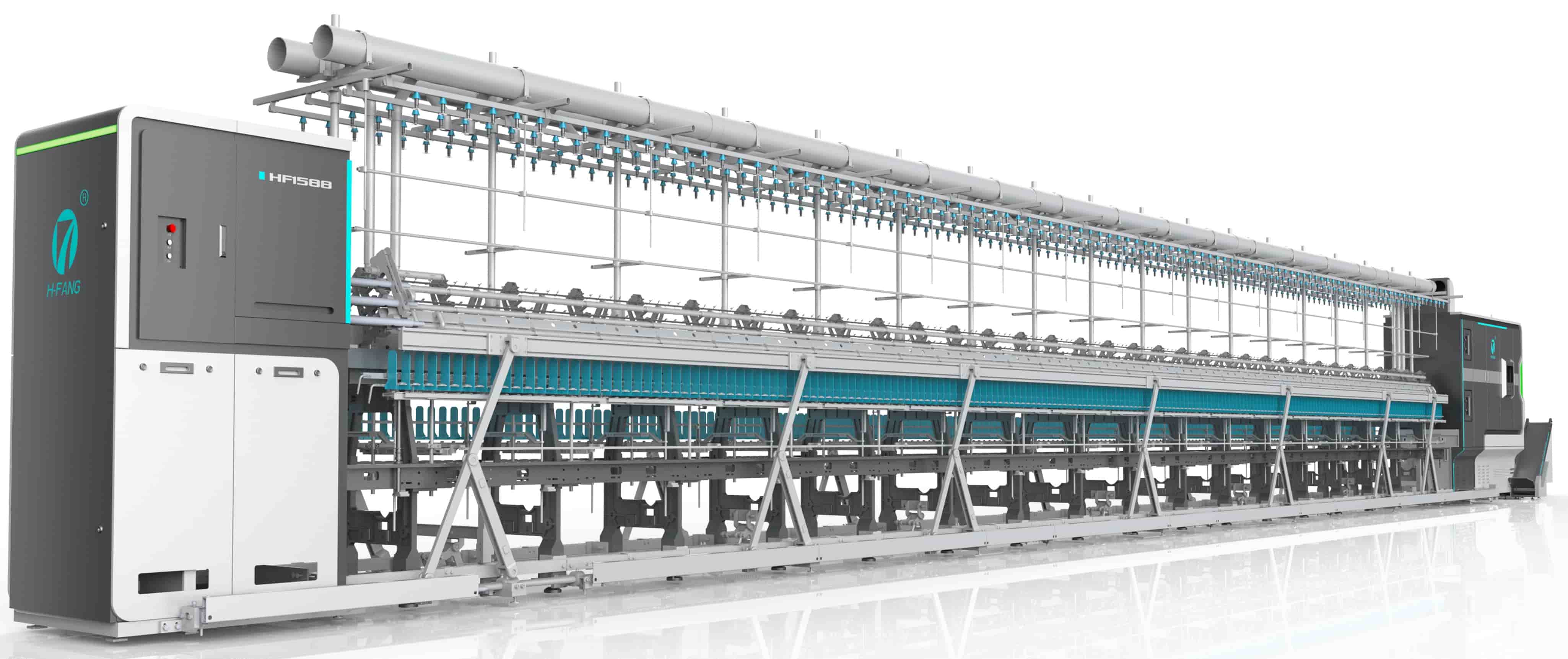

HF1588JL Auto-doffing Worsted Ring Spinning Frame

HF1588JL integrates electronic drafting, electronic lifting, electronic spindle, auto-doffing, compact spinning, single spindle detecting, remote monitoring and other intelligent technologies.

●   Electronic drafting

Laying the foundation of intelligence by realizing online adjustment and remote monitoring of process digitization. It can meet customers’ demands for fancy yarn spinning such as slub yarn and injection yarn.

●   Electric spindle

Each spindle is controlled by integrated PCB drive circuit board, the spindle automatically stops once it is detected with yarn breakage or poor quality, which can reduce energy consumption.

●   Single spindle detecting

Real-time detection of each spindle speed, yarn breakage, twist difference and other data, statistical production data.

●Four-roller compact spinning device

●Electric lifting

●Auto-doffing system with bobbin auto-sorter

●Intelligent electric control system

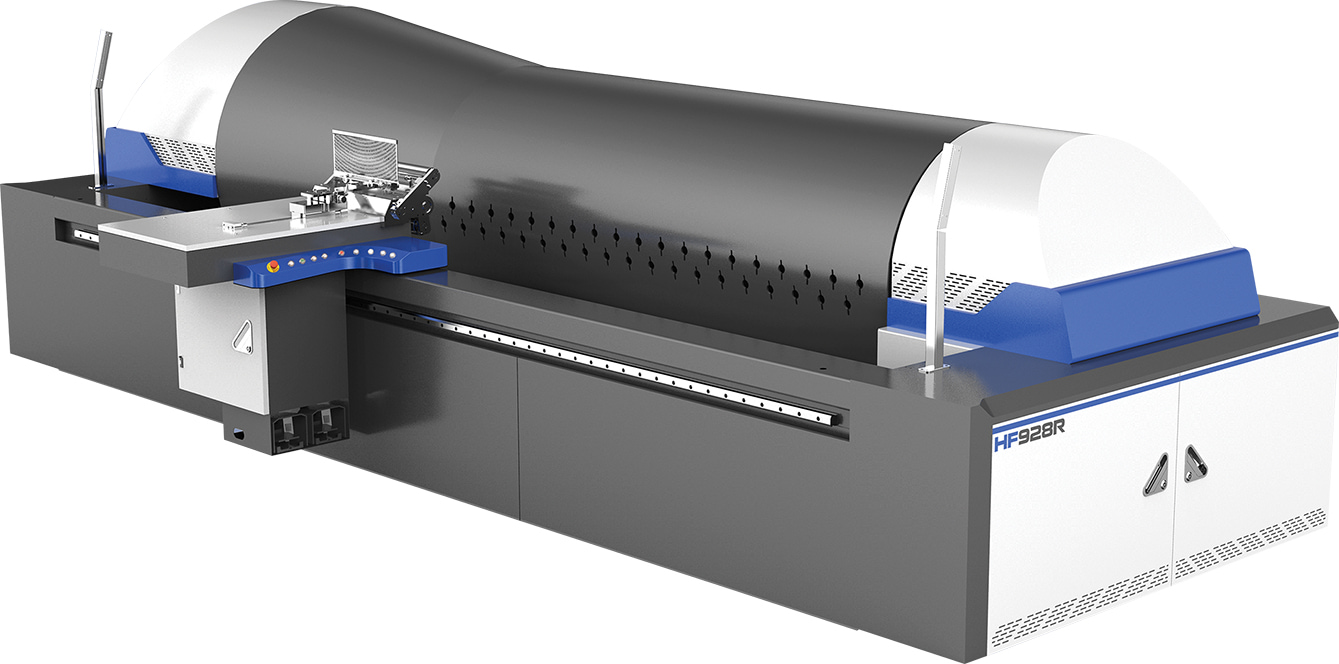

HF Series Sectional Warping Machine HF928R

Suitable for any staple yarn and filament.

●   Warping table

Skein yarn can be put in without opening yarn guide roller when warping, guarantee a constant and complete arrangement of warp yarn. Evener roller guarantees the evenness of yarn section.

●   Guide rail

Two high-precision linear guide rails, installed on each side of the wall.

●   Brake system

Hydraulic disc type brake, fast and stable.

●   Load/unload device

Driven by hydraulic power unit, rated load up to 4000 KG.

●   Clap/unclap:

Achieved by gearbox moving leftward &rightward.

●   Oiling/waxing device

Various types of yarn threading methods when beaming, reduce friction of middle guide rollers.

2024 ITMA Shanghai Textile Machinery Exhibition, H-FANG is looking forward to your arrival in H3D06!
