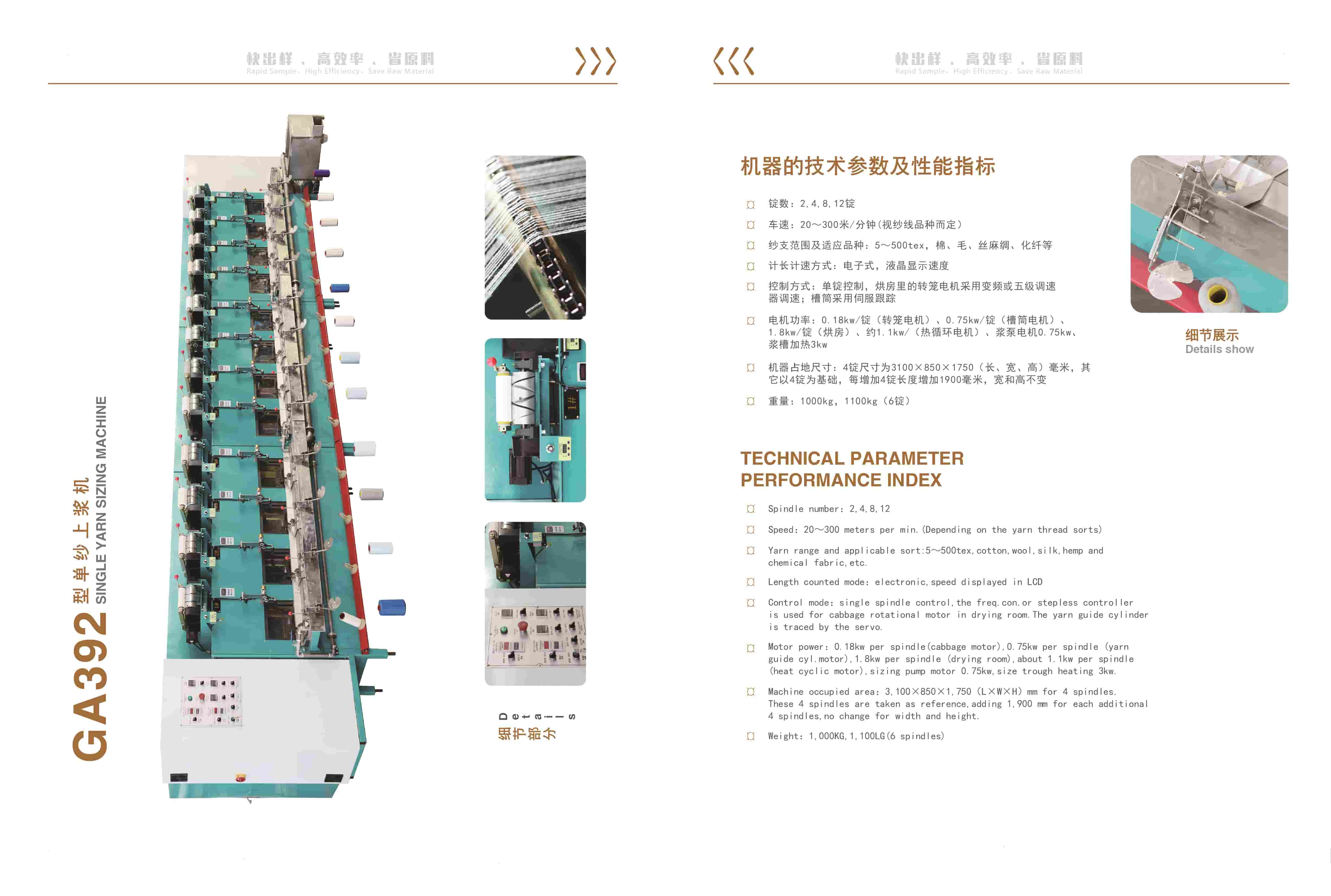

GA392 Single Yarn Sizing Machine

Technical Parameter Performance Index

- Spindle number: 2, 4, 12

- Speed: 20~300 meters per min. (Depending on the yarn thread sorts)

- Yarn range and applicable sort: 5~500tex, cotton, wool, silk, hemp and chemical fabric, etc.

- Length counted mode: electronic, speed displayed in LCD

- Control mode: single spindle control, the freg.con. or stepless controller is used for cabbage rotational motor in drying room. The yarn guide cylinder is traced by the servo.

- Motor power: 0.18kw per spindle (cabbage motor), 0.75kw per spindle (yarn guide cyl.motor), 1.8kw per spindle(drying room), about 1.1kw per spindle (heat cyclic motor), sizing pump motor 0.75kw, size trough heating 3kw.

- Machine occupied area: 3,100x850x1.750 (L*W*H) mm for 4 spindles. These 4 spindles are taken as reference, adding 1,900 mm for each additional  4 spindles, no change for width and height.

- Weight: 1,000KG, 1, 100LG (6 spindles)
